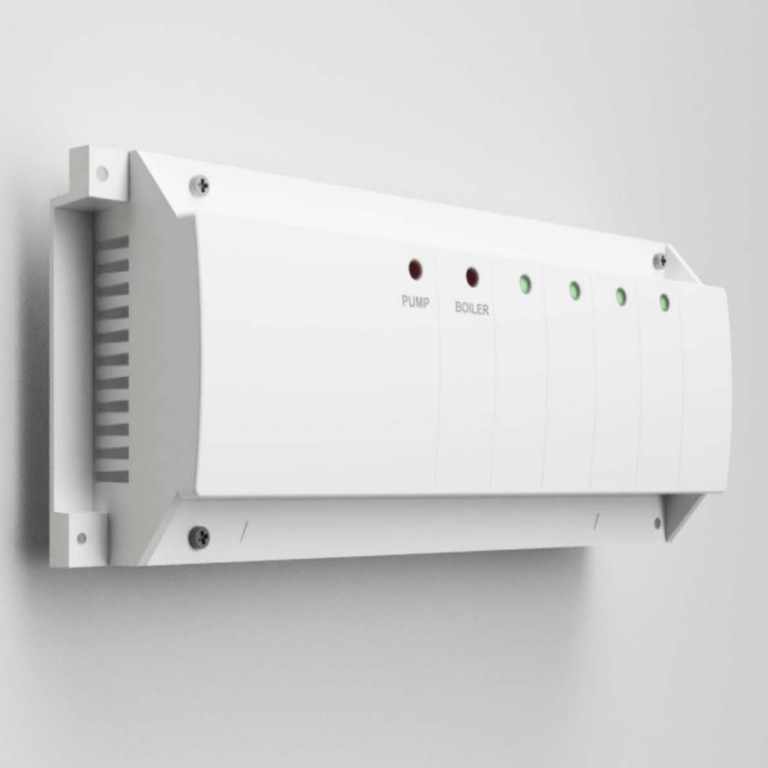

Wiring Centre S Range - Control Centre - 4 Zone
WHS-C-B-MASTER01
£83.57 inc. VAT
£69.64 ex. VAT
-
The S-Series Master Wiring Centre is designed to work with our 6iE, Element, tempo and S-Series range of thermostats and your heat source, i.e. boiler. The wiring centre can control up to 4 zones and connects room thermostats to their corresponding actuators. Additional zones can be added using the S-Series 4 or 6 zone Slave units. When the wiring centre is in operation, 230v output will switch relevant zone actuators, underfloor heating pump and valve on. Each zone is indicated by individual LED’s on the wiring centre. The wiring centre can be adapted either on a DIN rail or directly on a wall.
- Controls the operation of your wet underfloor heating system
- The wiring centre can be adapted either on a DIN rail or directly on a wall.
- A mains powered, low-voltage and wireless versions are available depending on your project needs
- Brand
- Warmup
- Guarantee
- 3 Years
- Category
- Wiring Centre
- Range
- Water Systems
- Product Code
- WHS-C-B-MASTER01
- Main Colour
- White
- Weight
- 414 g
- Length
- 240 mm
- Width
- 100 mm
- Height
- 65 mm
- GTIN
- 5034526006302
-
