  • Electrical & Lighting Wiring & Cabling Control & Security Cables 1m (per metre) Twinaxial 272 2 Core 20AWG Overall Braided Screen 600V Blue LSZH (9272) 78ohm - Cable

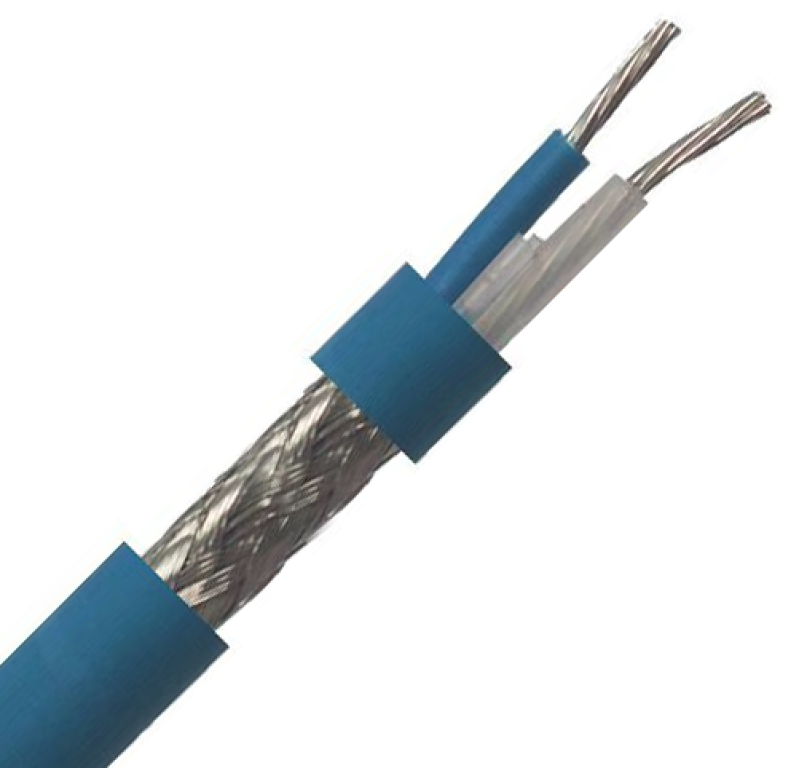

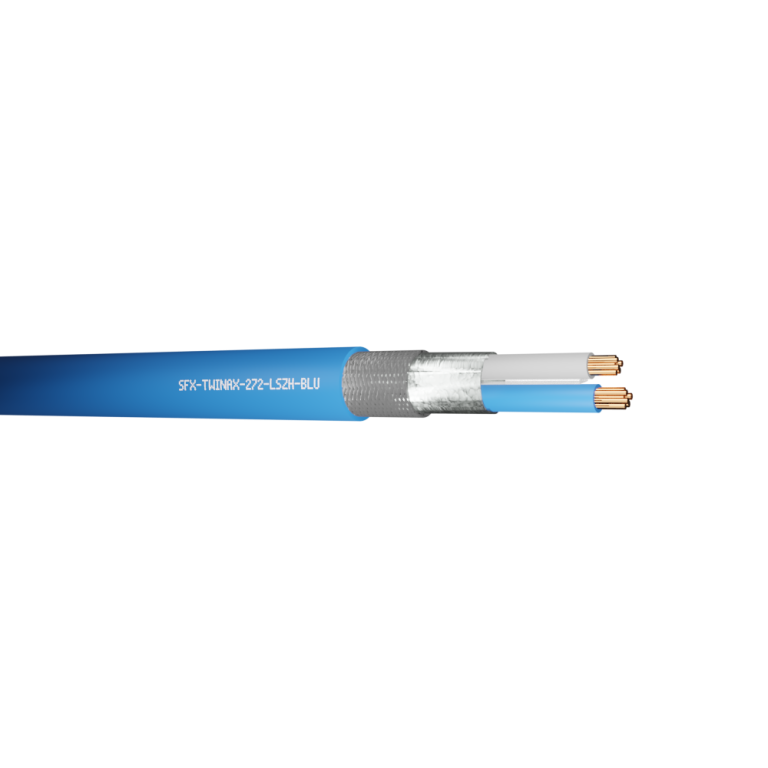

    1m (per metre) Twinaxial 272 2 Core 20AWG Overall Braided Screen 600V Blue LSZH (9272) 78ohm - Cable

    SFX/TWINAX-272-LSZH-BLU-1

    £1.06 inc. VAT

    £0.88 ex. VAT

    This product is not available to purchase online - please enquire for further details.

    • 1m (per metre) Twinaxial 272 2 Core 20AWG Overall Braided Screen 600V Blue LSZH (9272) CPR:Eca

      • Can be used for industrial and computer communication networks
      • Ideal for RS-422 communication and protocols
      • Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire
      • Two conductors to provide more protection from environmental damage and give a lower loss cable
      • Improved performance and protection against fire
      Brand
      Securi-Flex
      Guarantee
      25 Years
      Category
      Belden Equivalents
      Product Code
      SFX/TWINAX-272-LSZH-BLU-1
      Size
      Per 1m Lengths
      Dimensions
      Overall Diameter (mm): 6.20 ±0.20, Conductor Diameter (mm): 0.32 ±0.008 x 7(0.52mm²), Insulation Thickness (mm): 0.51, Insulation Thickness 2 (mm): 2.00 ±0.10, Jacket Thickness (mm): 0.85, Stranded Diameter (mm): 0.81
      Main Colour
      Blue
      GTIN
      5056631506775
