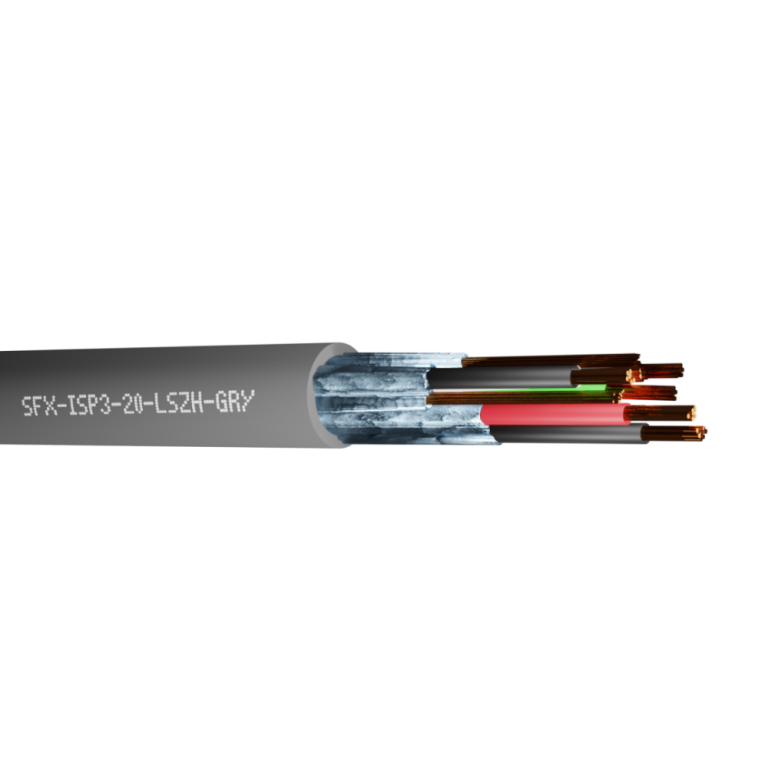

1m (per metre) ISP3-20 3pr 20AWG Individual Foil Screen 600V Grey LSZH (9873) - Cable
SFX/ISP3-20-LSZH-GRY-1
£1.86 inc. VAT
£1.55 ex. VAT
-
1m (per metre) ISP3-20 3pr 20AWG Individual Foil Screen 600V Grey LSZH (9873) CPR:Eca
- Wideley used in the security industry for CCTV telemetry purposes
- Also used in appliactions such as computing where extra screening is required to prevent cross talk between pairs
- Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire
- A quality alternative to genuine Belden cable
- Improved performance and protection against fire
- Brand
- Securi-Flex
- Guarantee
- 25 Years
- Category
- Belden Equivalents
- Product Code
- SFX/ISP3-20-LSZH-GRY-1
- Size
- Per 1m Lengths
- Dimensions

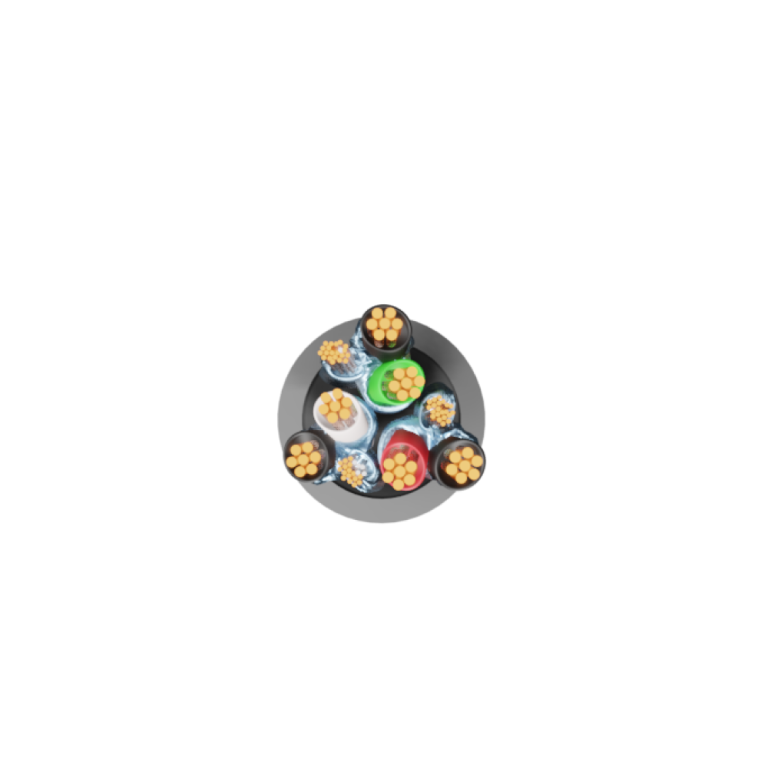

- Overall Diameter (mm): 8.70 ±0.20, Conductor Diameter (mm): 0.30 ±0.008 x 7(0.52mm²), Insulation Thickness (mm): 0.3, Insulation Thickness 2 (mm): 1.50 ±0.10, Jacket Thickness (mm): 0.9, Stranded Diameter (mm): 0.81, Drain Wire Conductor Diameter (mm): 0.15 ±0.008 x 19
- Main Colour
- Grey
- GTIN
- 5056631504832
-
Our returns policy
Please see our Terms of Sale for our full returns policy.
