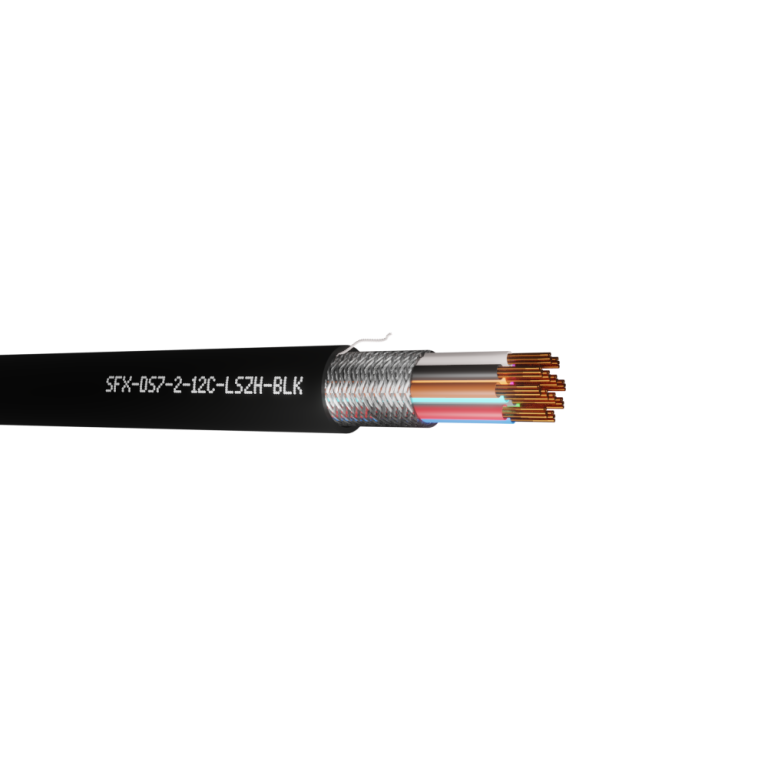

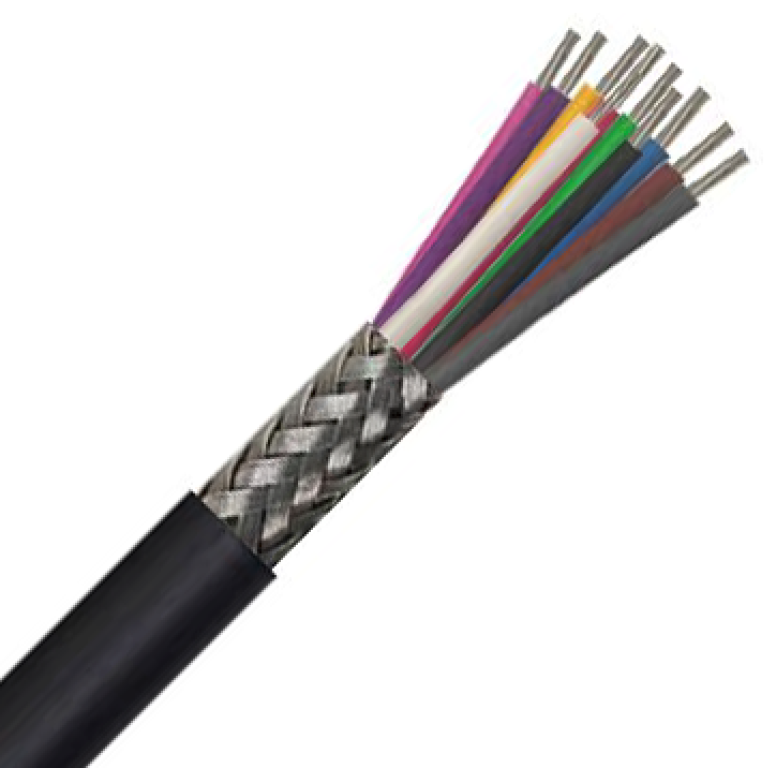

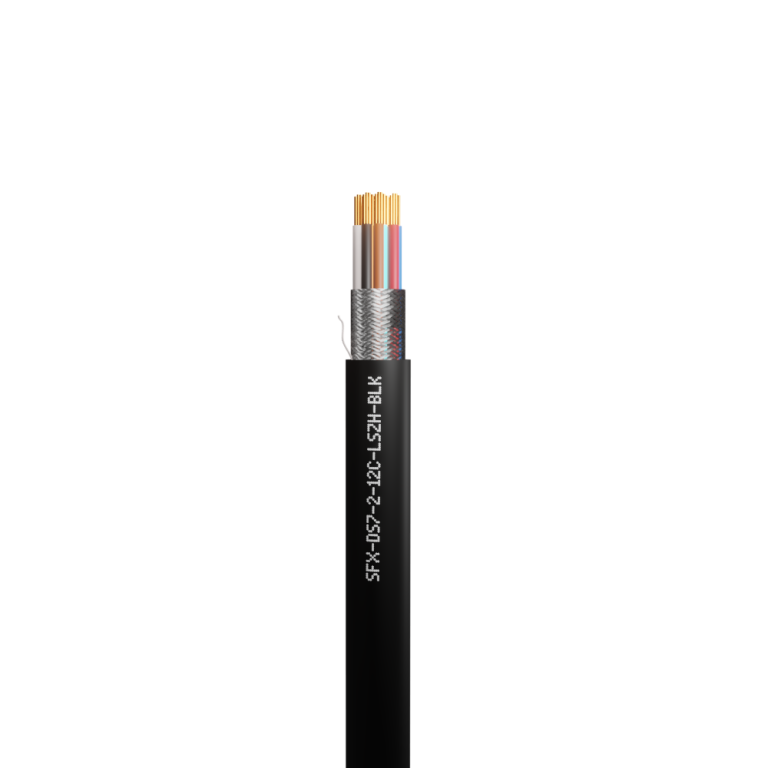

1m (per metre) Def Standard 7 x 0.2mm 12 Core TCWB Screened Black UV LSZH CPR:Eca
- Originally designed for military use, these cables are now widely used in many other industries and applications
- A robust, compact cable with high working voltage range
- Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire
- These cables should not be used for mains connections
- Improved performance and protection against fire
- Uses include security, telemetry, data processing, process control, instrumentation, control equipment and aviation
- Brand
- Securi-Flex
- Guarantee
- 25 Years
- Category
- Defence Standard Cable
- Product Code
- SFX/DS-7-2-12C-LSZH-BLK-1
- Size
- Per 1m Lengths
- Dimensions
- Overall Diameter (mm): 6.90 ±0.20, Conductor Diameter (mm): 0.19 ±0.008 x 7(0.2mm²), Insulation Thickness (mm): 0.3, Insulation Thickness 2 (mm): 1.20 ±0.10, Jacket Thickness (mm): 0.65
- Main Colour
- Black
- GTIN
- 5056631503583
-
