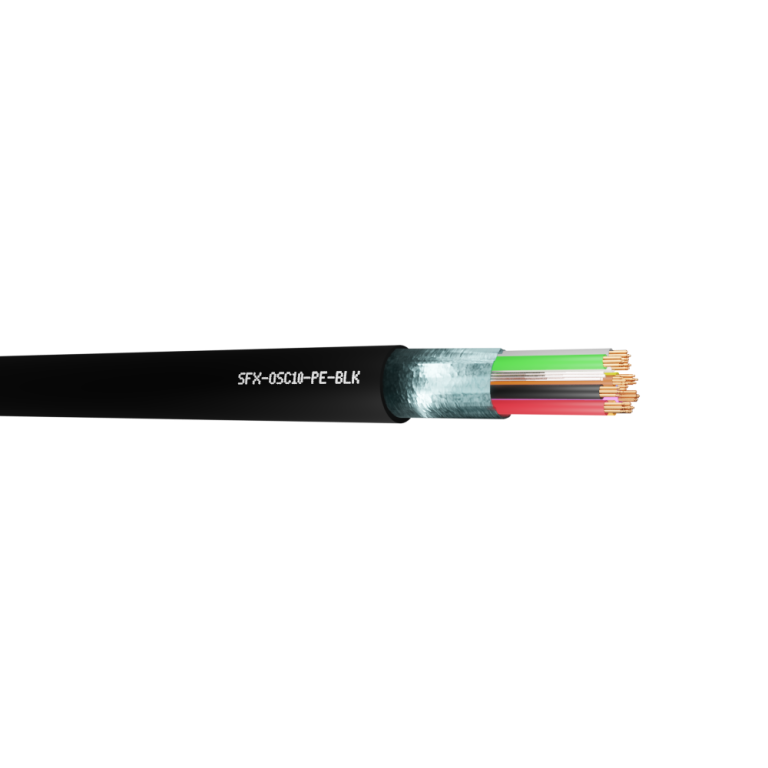

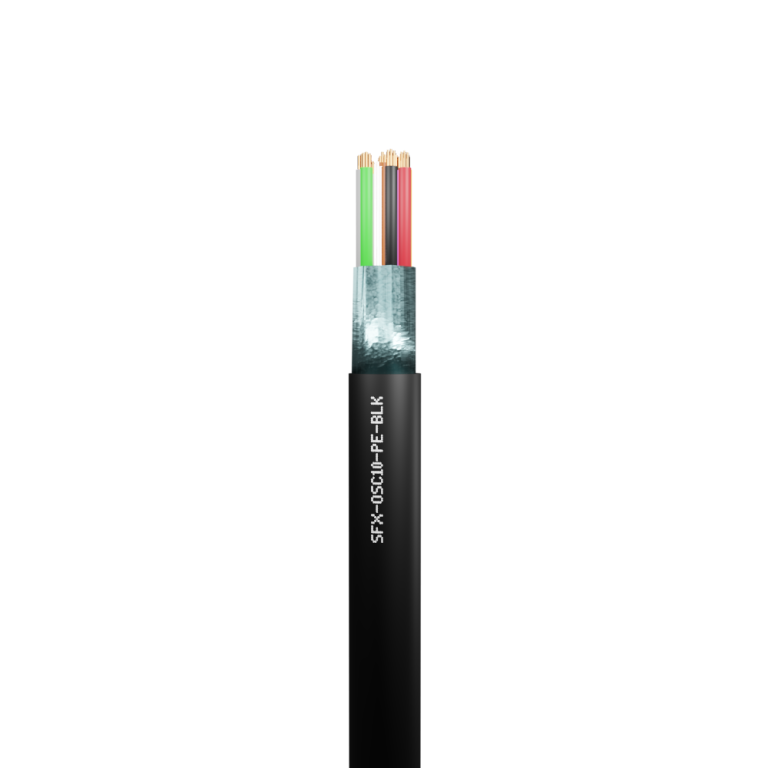

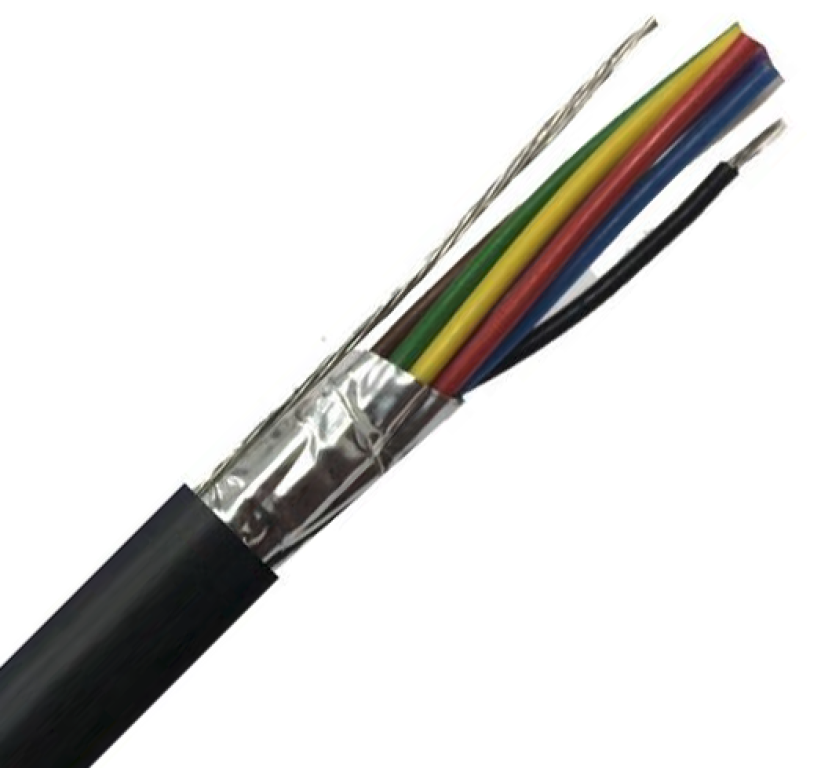

100m OSC10 10 Core 24AWG Overall Foil Screen 600V Black PE (9540) CPR:Fca
- Additional screening makes this cable suitable to be installed in areas where protection from electrical interferance is required
- Used for RS232 protocol
- Polyethylene plastic is excellent for use externally above ground or below ground inside ducting
- A quality alternative to genuine Belden cable
- UV resistant
- Brand
- Securi-Flex
- Guarantee
- 25 Years
- Category
- Belden Equivalents
- Product Code
- SFX/OSC10-PE-BLK-100
- Size
- Reel of 100m
- Dimensions

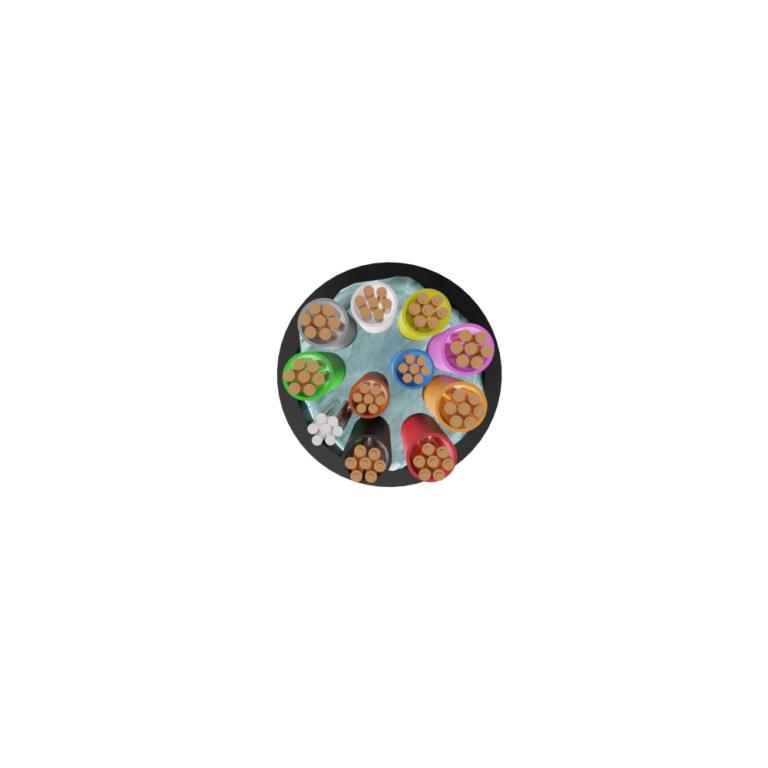

- Overall Diameter (mm): 6.20 ±0.20, Conductor Diameter (mm): 0.19 ±0.008 x 7(0.22mm²), Insulation Thickness (mm): 0.3, Insulation Thickness 2 (mm): 1.20 ±0.10, Jacket Thickness (mm): 0.50, Stranded Diameter (mm): 0.22, Drain Wire Conductor Diameter (mm): 0.19 ±0.008 x 7
- Main Colour
- Black
- Weight
- 6 g
- GTIN
- 5056631505273
-
