Heating Motorised Valves Optimum Mid Position Valve Actuator for 3 Port Motorised Zone Valves

Optimum Mid Position Valve Actuator for 3 Port Motorised Zone Valves

OP-MIDH

£0.00 inc. VAT

£0.00 ex. VAT

In-store only

This product is only available in-store.

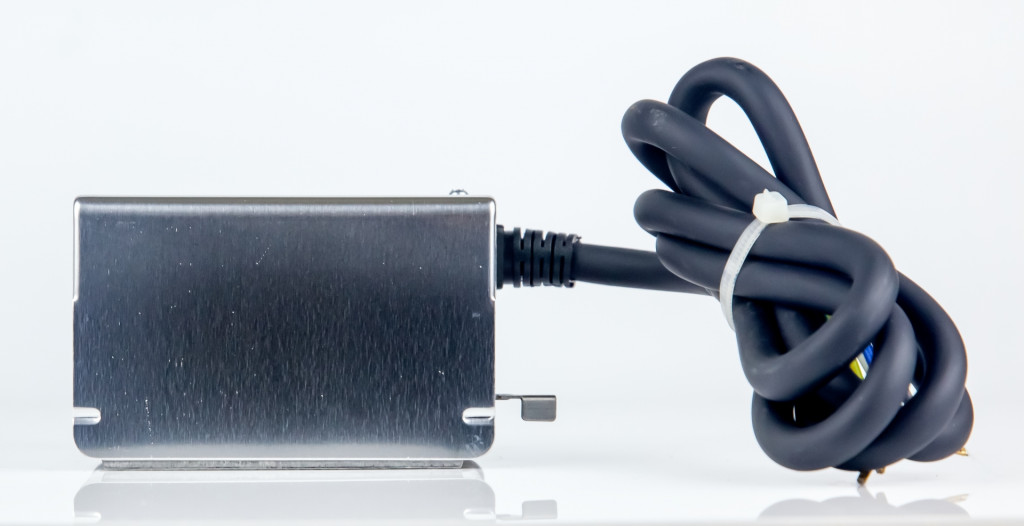

  • Optimum replacement mid-position valve actuator for 3 port motorised valves, designed to fit both 22mm and 28mm valve bodies. This valve actuator can be fitted without the need to drain down your heating system and is a suitable replacement for the following brands: Tower VAL222MV / VAL228MV / Corgi VAL222MV-C / Honeywell V4043A. If your existing valve has stopped working, replace the actuator head only. Saves money and time.

    • Replacement Mid Position Valve Actuator
    • Mid position 3 port valve actuator for 22mm or 28mm valves
    • Synchronous motor driven with spring return and auxiliary switch (SPST)
    • 1m industry standard flex (colours: brown; blue; grey; orange; green/yellow)
    • Switch rating: 3A resistive
    • Supply voltage: 230V AC
    Brand
    Optimum
    Category
    Optimum
    Product Code
    OP-MIDH
    Dimensions
    85x60x60
    Box Quantity
    1
    Weight
    519 g
    Width
    60 mm
    Height
    60 mm
    Depth
    85 mm
    GTIN
    5028415005729
