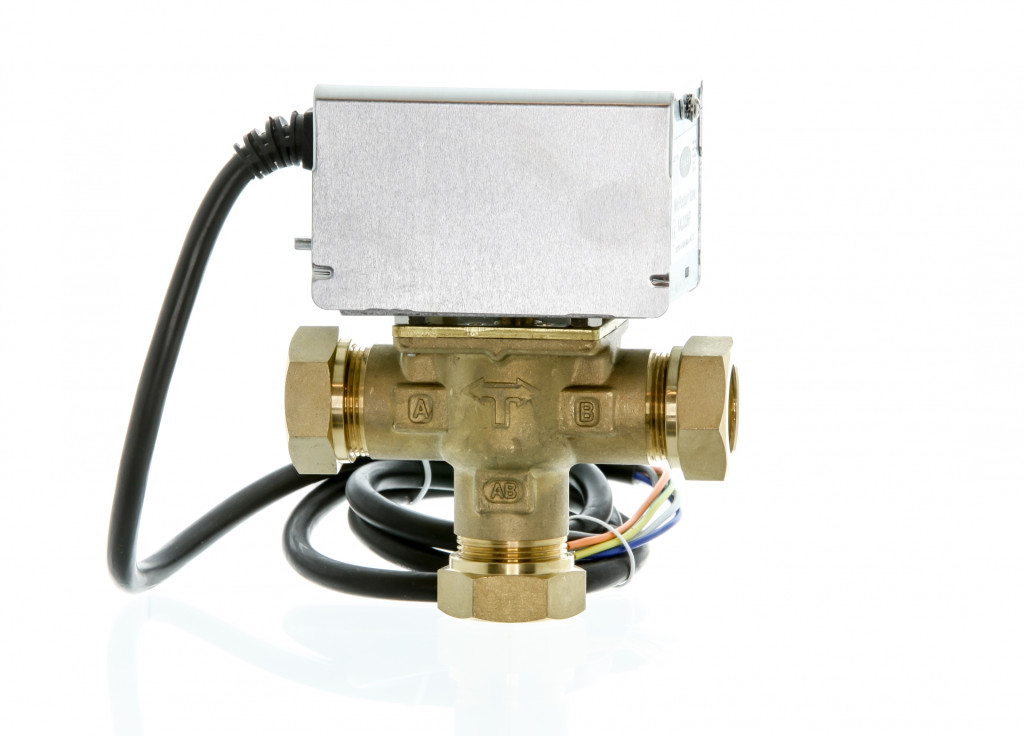

22mm Mid-position valve
VAL322MP
£0.00 inc. VAT
£0.00 ex. VAT
In-store only
-
The VAL322MP is a 3 port spring return mid-position valves with 22mm compression fittings and switched output. These are for use on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the water flow from the boiler to either to hot water only, heating only, or to both simultaneously.
- 22mm Mid Position 3 Port Motorised Valve
- Synchronous motor driven with spring return and switched Output (SPST)
- 1m industry standard 5 core flex
- Integrated manual lever
- Switch rating: 3A Resistive
- Brand
- Tower
- Category
- Motorised Valves
- Product Code
- VAL322MP
- Dimensions
- 115x132x75
- Box Quantity
- 1
- Weight
- 1061 g
- Length
- 115 mm
- Width
- 132 mm
- Height
- 75 mm
- GTIN
- 5028415001035
-
